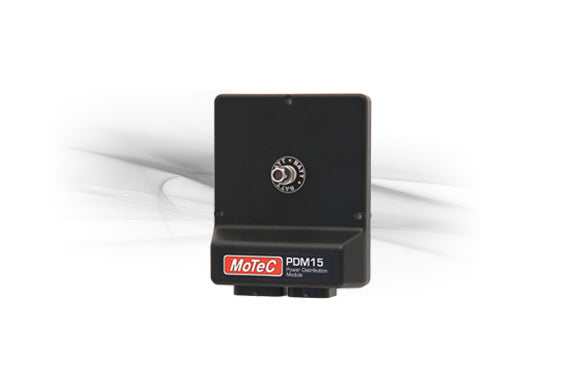

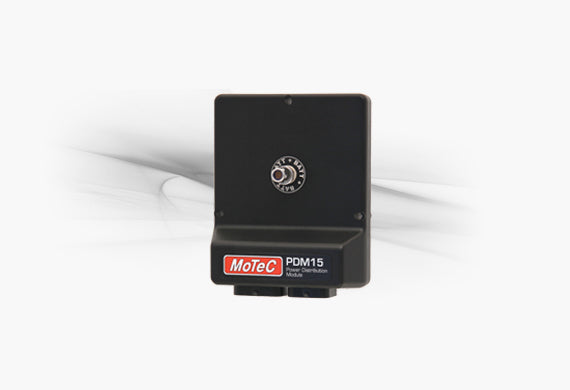

PDM15

MoTeC’s 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and...

Regular price

Options

  • Description
  • Customer Review
  • Product tags

MoTeC’s 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

NEWS: MoTeC CAN Keypads are now available for use with MoTeC PDMs.

BASIC SPECIFICATIONS

Outputs :

  • 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)
  • 7 x 8 A outputs - 8 A continuous, 60 A transient (typical)

Inputs :

  • 16 x Switch inputs

Communications :

  • 1 x CAN

Diagnostic Information :

  • Output current and voltages
  • Input voltages
  • Error status

Physical :

  • Connectors

- 1 x 34 pin waterproof connector

- 1 x 26 pin waterproof connector

- 1 x M6 stud

  • Case size 108 x 128 x 39 mm
  • Weight 260 grams

Download Datasheet

CDS14104 PDM15 Power Distribution Module

Product tags

Related Products

Sold Out PDM30 PDM30

PDM30

MoTeC’s 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the v...

Sold Out PDM32 PDM32

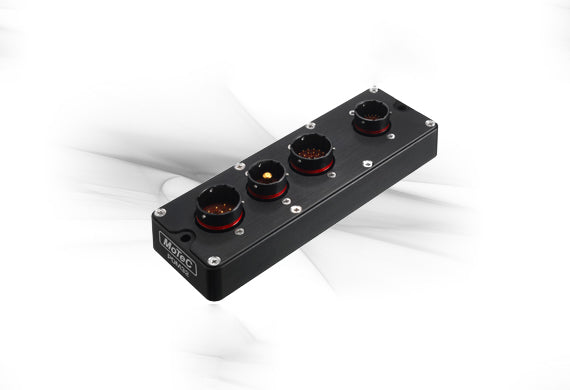

PDM32
