IEX: Ignition Expander

The Ignition Expander module (IEX) is designed to increase the ignition output capacity of MoTeC ECUs. The IEX connects to a single ignition output on the ECU and can drive up to 8 ignition modules....

Regular price

Options

  • Description
  • Customer Review
  • Product tags

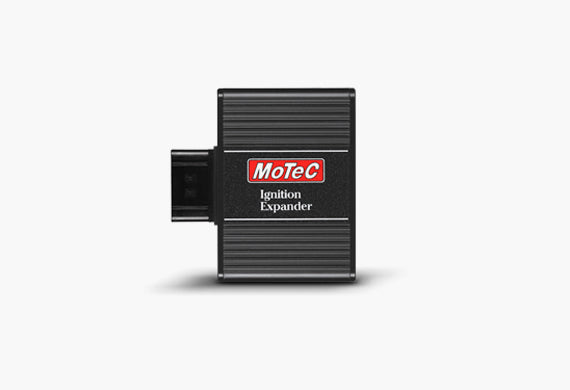

The Ignition Expander module (IEX) is designed to increase the ignition output capacity of MoTeC ECUs.

The IEX connects to a single ignition output on the ECU and can drive up to 8 ignition modules. For 10 and 12 coil applications, two IEX units can be used.

Note that the IEX does not drive the coil directly, an ignition module is still required.

An IEX is not a stand-alone device.

Compatible with

  1. M4, M48, M8, M84, M400, M600, M800, M880
  2. Not compatible with M1 Series ECUs

SPECIFICATIONS

Outputs

  1. 8 x ignition outputs
  2. - Suits most ignition modules of falling edge type

    - The dwell time is controlled by the ECU

    - For 10 and 12 coil applications, two IEX units can be used

Communications

  1. MoTeC specific coded signal supplied from a single ignition output on the ECU

Physical

  1. Case size 70 x 100 x 35 mm
  2. Weight 220 gram
  3. 18 pin waterproof connector with gold plated contacts

Donwload Datasheet

  1. IEX Ignition Expander Wiring
  2. IEX Ignition Expander Wiring - 12 coils

Product tags

Related Products

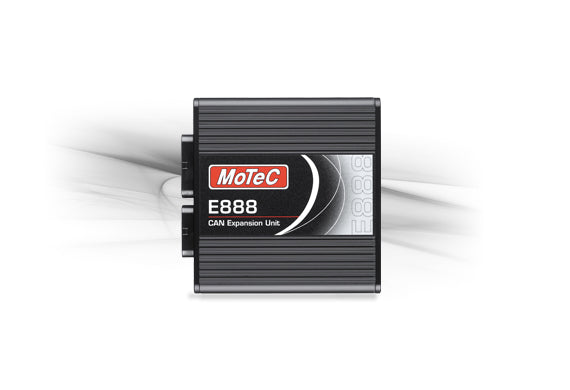

Sold Out E888 E888
