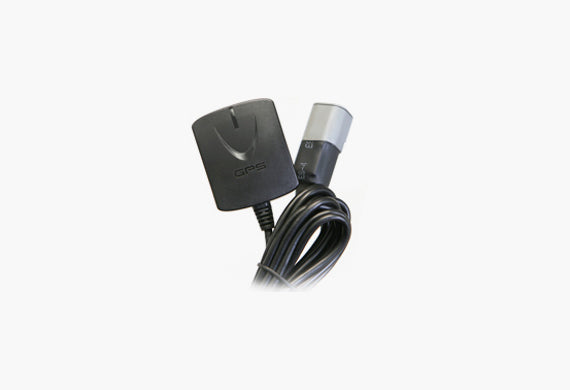

GPS-L10

The GPS-L10 is a 10 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC Dash/Data Loggers. It is not compatible with MoTeC ECUs. (See GPS-L5)

This unit is suitable for speed, position and lap timing.

Compatible with

1. MoTeC ACL
2. MoTeC ADL3, ADL2 (not compatible with original ADLs)
3. MoTeC SDL3, SDL
4. C1 Series Displays
5. L1 Series Loggers
6. M1 Series ECUs

SPECIFICATIONS

Performance

1. Update rate 10 Hz
2. 66 satellite channels
3. Dynamics 4 G
4. Power supply voltage 4.0 – 6.0 V

Communications

1. RS232
2. Baud rate: 38400

Physical

1. Case size 48 mm x 41 mm x 14 mm
2. Weight 106 g
3. 1 x 4 pin Deutsch DTM, 3 m flying lead
4. Built in antenna
5. Mounting - magnetic base
