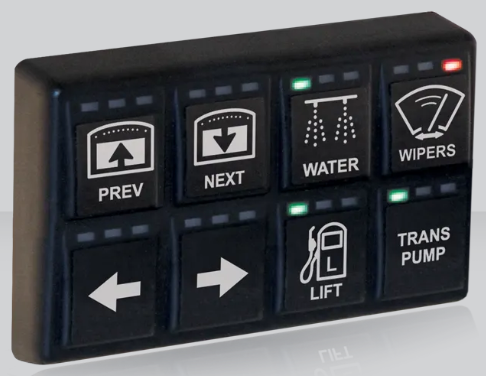

8 BUTTON KEYPAD

MoTeC's multi-button backlit CAN Keypads provide a switching solution that can be customised and connected to any MoTeC PDM.

The buttons can be used as inputs to control the PDM and other devices in the vehicle. The three LED lights along the top of each button can be used to indicate the state of the devices.

FEATURES

1. • Small, lightweight and compact package
2. • Rugged design – vibration, and impact resistant for use in extreme environments
3. • Dust and water resistant - sealed to IP67
4. • Dimmable LED indicators above each button for real-time feedback
5. • Backlit buttons
6. • Pre-designed semi-transparent labels supplied
7. • Supports multiple key press combinations
8. • Simplified wiring - only 4 wires required for multiple buttons
9. • Short circuit and reverse polarity protection

ELECTRICAL

1. • Operating voltage: 8 to 32 V DC
2. • Operating current: 0.2 A maximum
3. • Reverse battery protection
4. • Short circuit protection

AMBIENT OPERATING TEMPERATURE

1. • -40 °C to 85 °C

PHYSICAL

1. • 1 x 4 pin Deutsch DT connector
2. • Size (without connector): 104.7 x 62.82 x 15.52 mm
3. • Weight: 105 g
